The YoraHome Mandrill CNC Router 3036 is perfect for beginners and professionals willing to take their craft to the next level.
It can cut various materials such as wood, plastic, resin, PVC, acrylic, soft aluminum, and more.
If you want a working area two times bigger than 3018 CNC series, more speed and power for your cutting projects, then the Mandrill is exactly what you need.
Optimized for accuracy and heavy duty milling, this CNC carving machine has an open working area of approximately 30x36cm (12x14in) which makes it easy to lay down pieces of material.

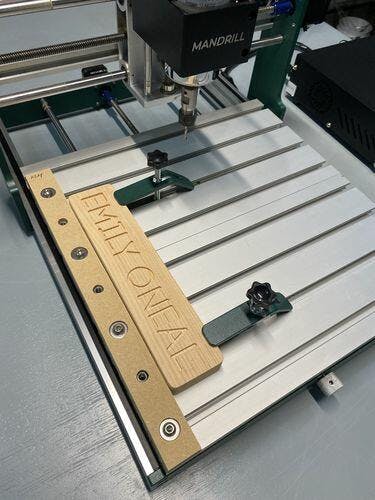

Boasting a rigid aluminum body with a solid aluminum spoilboard bed, the YoraHome Mandrill CNC Router 3036 gives you a premium look and feel for your machine while providing a strong and stable base for your carving.
The YoraHome Mandrill CNC Router 3036 uses a very powerful and stable 500W air cooled spindle motor with an ER11-style chuck to maximize the performance of your carving bits.
Every YoraHome Mandrill 3036 comes with an additional mount for an optional laser module (33x33mm) which allows you to use the Mandrill as a laser engraver; making it a 2-in-1 system.
1. DM542 Micro Step Drivers: Exceptional low noise, and low heat.
2. Knobs on Y and Z Axes: For micro adjustments and easy manipulation.
3. Acme Lead screws: For higher precision and translates turning motion into linear motion.
4. Limit Switches: Alllows the machine to know its home position and prohibits crashing. No more jamming the machine against the frame.
5. Emergency Stop Button: No more trying to find the stop button on your computer.
6. Z-Probe: For easier setup on carving projects.
7. Drag Chains: For easier cable management.
8. Workholding included: Clamps to hold down your work piece.
9. Arduino board loaded with GRBL Firmware: Works with Easel, Vectric, Carveco, Fusion 360, and other commonly available CNC software. Separate controller box with pause, resume, reset button controls.
The YoraHome Mandrill CNC Router 3036, is operated via a computer that communicates directly with the control board of the Mandrill.
We recommend Easel which is a web-based CNC software platform that allows you to design and carve from a single, simple program. It is free, easy to use and compatible with your Windows, Mac or Linux computer.
For V-carving, advanced toolpaths and more, get Easel Pro software.
For high quality 2D & 3D projects, we recommend Carveco.
If you want to explore the amazing world of CNC, make dazzling gifts, or start a new business, then grab the YoraHome Mandrill CNC Router 3036 today! You will make more money while having fun!
Our Facebook group dedicated to supporting and collaborating with YoraHome CNC users has rapidly grown to more than 5K members. Customers worldwide come to learn, share their unique projects, and provide immense value to new users. It is the best and most supportive group in the CNC industry today.
We also have a CNC forum to organize better our topics discussions which is a platform outside Facebook to connect freely with other CNC users.
And last but not least, our Buddy program, where you can find a local maker who owns the same YoraHome machine you're looking at, can answer your questions and give you real hands-on with the technology.
Working Area : 30x36x5cm (approx. 12x14")
Footprint: 53x35x38cm (approx. 21x14x15")
Weight: 33 lbs (Shipped in 1 box)
Software & System Requirements:
Easel/Easel Pro: Windows 7 or higher, MacOS 10.12 (Sierra) or higher, Ubuntu Linux 18.04 or higher
Carveco: Windows 10 64-bit
1x 3036 Router Kit (Preassembled with full set of components)
1x Controller Box
1x 500W Spindle Motor (With 52mm diameter mount)
1x Mount For Laser Module Attachment (33x33mm)
1x Aluminum Spoilboard (2 Pcs)
10x Shank Blue Coated Corn Milling Bits
10x Tungsten Carbide Engraving Bits
1x Extension Rod With ER11 Collet
4x Plate Clamp
1x English Manual
1x USB Drive (Instructions, Driver, Software & Assembly links)
1x Free Access To The YoraHome Community
What you need to provide: Computer, Material To Cut & Your Creativity
We are out developing new upgrades and some of the most unique products in the world – and we back it up with our unbeatable 40 Day Guarantee.
If you don’t have a happy experience, we will do whatever it takes to make sure you are 100% satisfied with your purchase. Feel free to contact us for any assistance you might need.
YoraHome warrants its CO2 and Fiber Laser Engravers against defects in materials or workmanship for two (2) years from the original date of receipt.
CNC routers, diode laser engravers, drawing/writing robots, and 3D printers are warranted for one (1) year. More details here.
