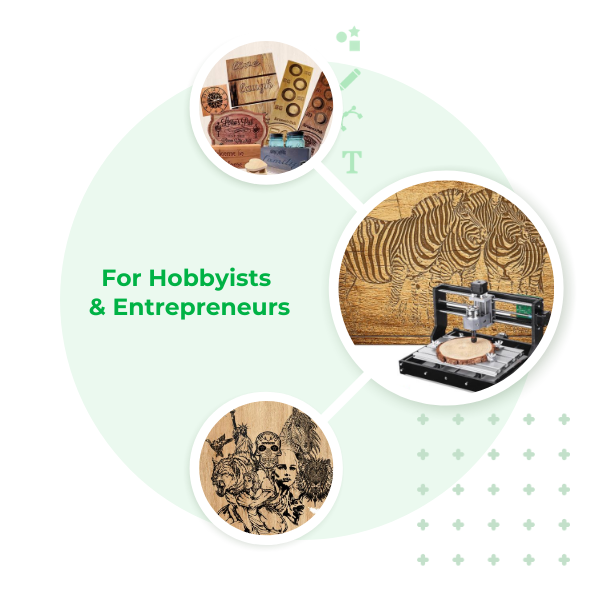

The YoraHome CNC Router 3018-Pro, also called "Yora 3018" is the best DIY CNC router in the market today.
This machine can be used to cut anything from wood to acrylic, and working with it gives you an in-depth look at how CNC machines work on a mechanical level.
If you want to get started with CNC engraving or milling, the Yora 3018 is a great place to start!
Optimized for accuracy and ease of use, this CNC carving machine has an open working area of 30x18 cm (12x7") that makes it easy to lay down pieces of material.
The effective engraving depth of the Yora 3018 is up to 4.5 cm (1.8").
If you want more space, you can add our expansion kit to the machine. It will allow you to convert your 3018 to a 30x36 cm (12x14") working area.
Or, you can simply grab our all-in-one Mandrill CNC Router 3036 that comes with a 30x36 cm working area, 300W spindle and more features.
Boasting a pleasant phenolic body combined with a solid aluminum inner structure, the YoraHome CNC Router 3018-Pro gives you a premium look and feel for your machine while providing a strong and stable base for your carving.
The spindle motor is what drives the carving process, as its speed and power determine what materials can be cut.
The YoraHome CNC Router 3018-Pro uses a powerful spindle motor with an ER11-style chuck to maximize the performance of your carving bits. We recommend our Yora Essential Bits for optimal results.

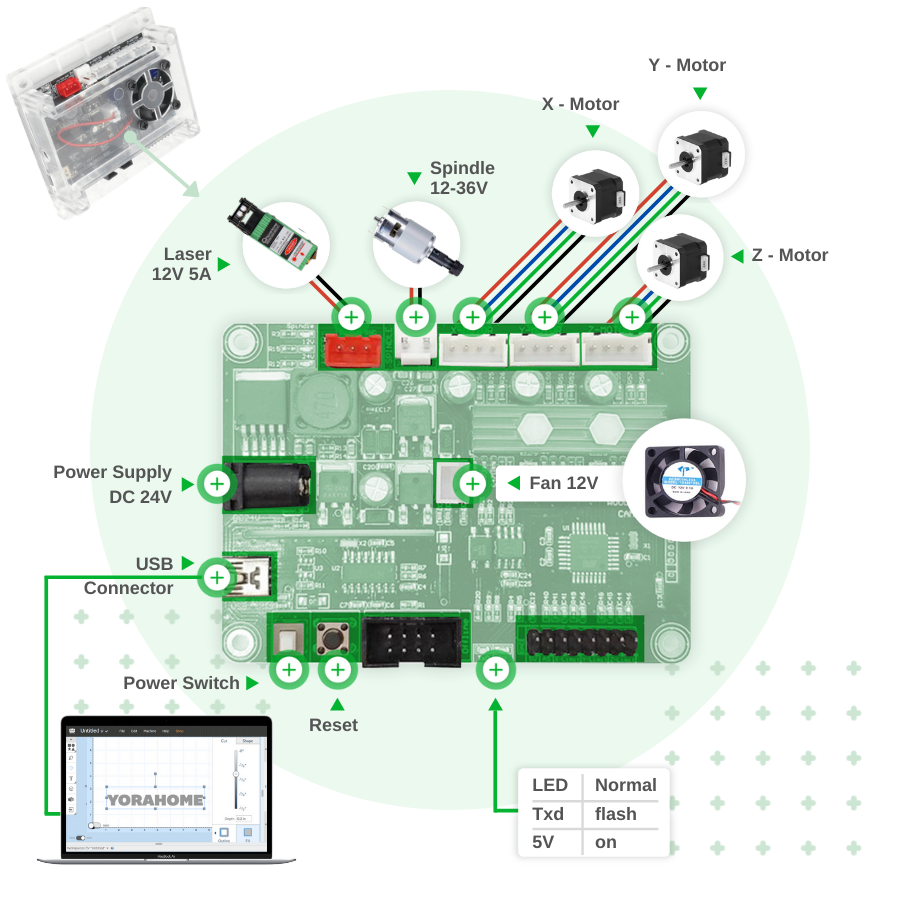

The Yora 3018 control board runs on Arduino which is a very reliable and popular open source platform.
It now includes a cooling fan to better dissipate the heat and maintain peak performance during the entire carving process.
To operate the YoraHome CNC Router 3018-Pro, a computer with software that will communicate directly with the control board of the machine is required.
We recommend Easel which is a web-based CNC software platform that allows you to design and carve from a single, simple program. It is free, easy to use and compatible with your Windows, Mac or Linux computer.
With the YoraHome 3018-Pro Carving machine, you can cut materials like wood, acrylic, plexiglass, PCB and soft aluminium.
We recommend not to engrave anything harder than brass or aluminum 6061. Anything harder can result in the motor burning out or some parts breaking.
If you want to explore the amazing world of CNC, or if you want to start a new business, grab the YoraHome CNC Router 3018-Pro today. You will make more money while having fun!
Created in 2020, our Facebook group dedicated to supporting and collaborating with YoraHome CNC users has rapidly grown to almost 4K members.
Our customers from all over the world come to learn, share their amazing projects, win prizes and in return provide immense value to new users. It is the best and most supportive community in the CNC industry today.
Frame Size: 40x33x24cm (16x13x9")
Effective Engraving Area: 30x18x4cm (12x7x 2”)
Material: Aluminum & Phenolic
Adapter Plug: 2-Pin US Plug
Adapter Input Voltage: AC 110-240V 50/60Hz
Adapter Output Voltage: DC 24V 4A
Spindle Motor: 775 Spindle Motor (12-36V), 12V: 300 RPM, 24V: 7000 RPM, 36V: 9000r/min, Rated power: 60W, Maximum power: 120W
Stepper Motor: 42 Stepper, 12V, 1.3A, 0.25N.m Torque
Computer Requirements: Windows 7 or higher, MacOS 10.12 (Sierra) or higher, Ubuntu Linux 18.04 or higher
Software: Easel (free to use)
Can carve: Wood, soft Aluminum, Plastic, Acrylic, PCB & Similar Items
Can't Carve: Hard Metal
1x DIY Router Kit (Full set of components)

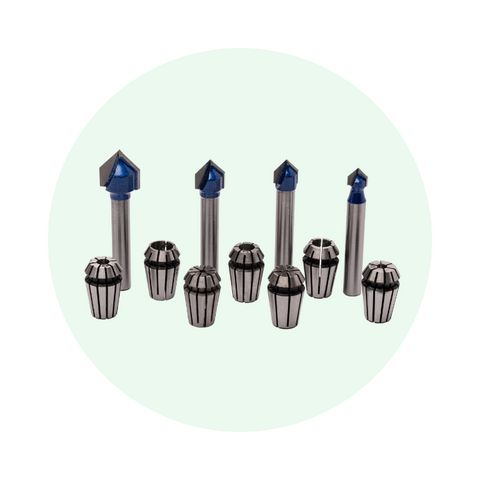

10x CNC Tungsten Carbide Engraving Bits
1x Extension Rod With ER11 Collet
4x Plate Clamp
1x English Manual
1x USB Drive (Instructions, driver, software and assembly links)
1x Free Access To The YoraHome CNC Community
