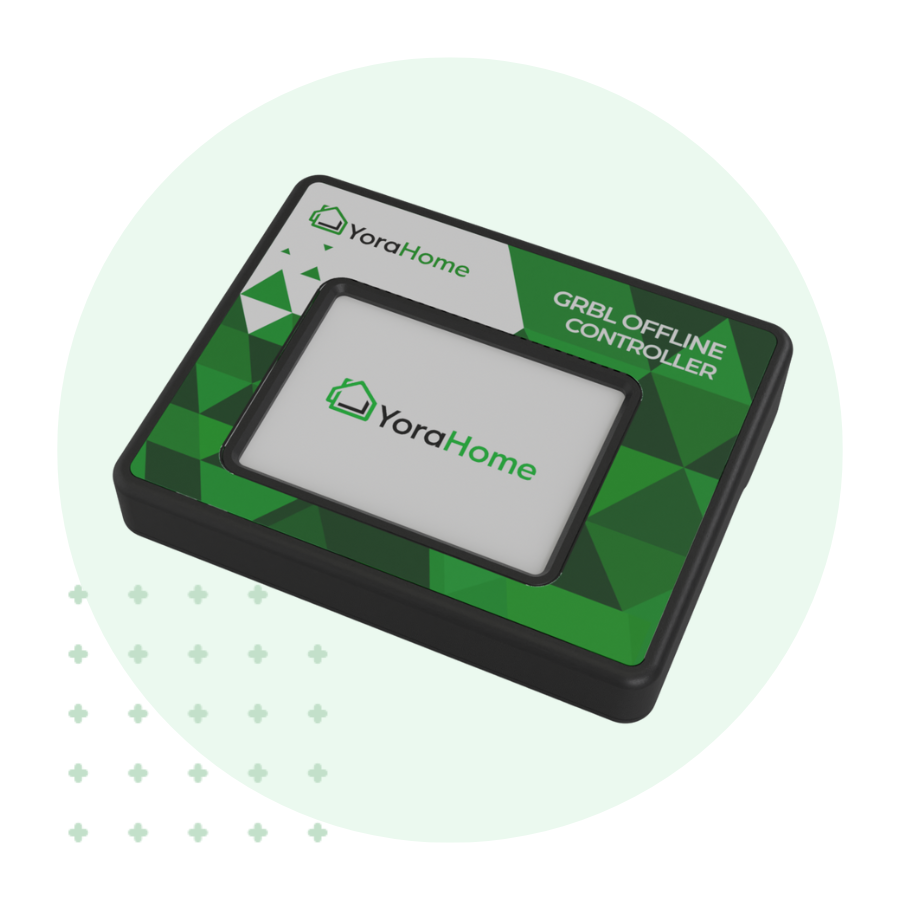

The YoraHome Offline Controller With LCD Touchscreen is built for those who want to use their Mandrill or SilverBack CNC machine offline.
It allows you to control the machine without having to use a computer.
Note: The offline controller does not allow for direct loading of image files. It does require the Gcode files from your project to be loaded into the SD card for operation.

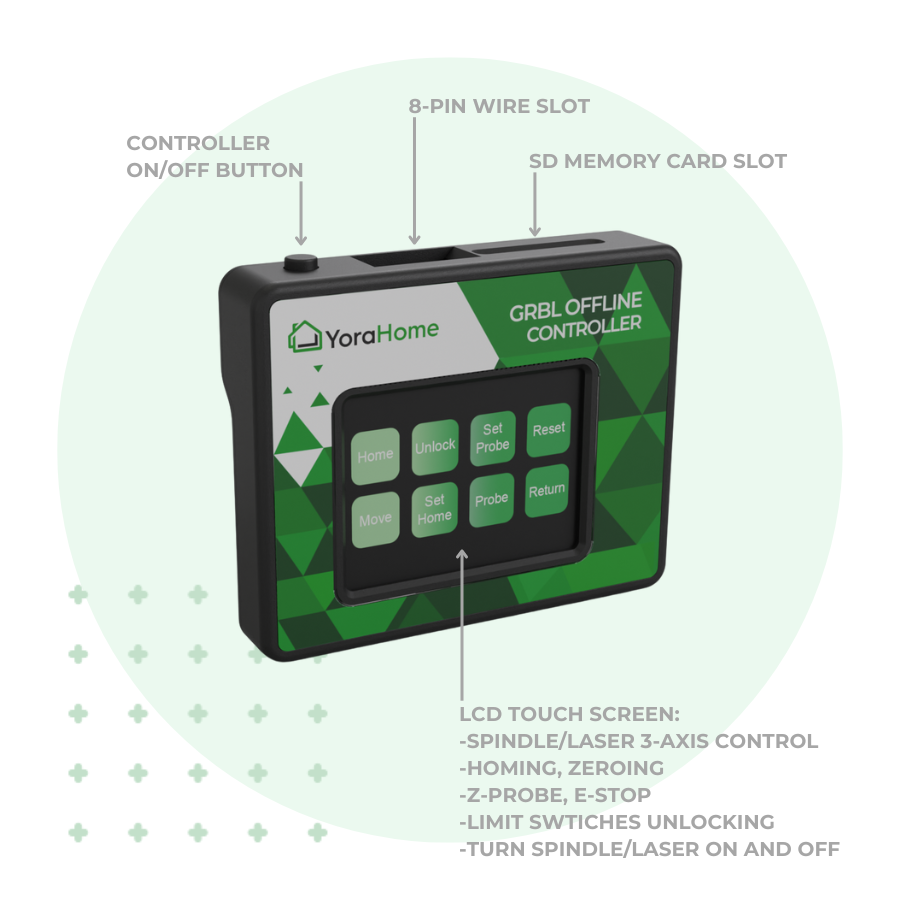

Equipped With: Controller On/Off button, 8-Pin wire slot, SD memory card slot, 2.4” LCD touch screen display
Functions: Spindle/Laser XYZ three-axis control, Homing, Zeroing, Resuming, Resetting, E-stop, Z-Probe, Limit switches unlocking, Turn spindle/laser on and off
Working Voltage: 12-36V
Software: Easel, Carveco, V-Carve, All GRBL software
Supported OS: Windows, Mac, Linux
Compatible Machines: Mandrill 3036 CNC Router, SilverBack 6060/1x1m CNC Router
Package Includes: 1x Offline controller with LCD Touchscreen, 1x 8 Pin Wire Cable, 1x SD Card
